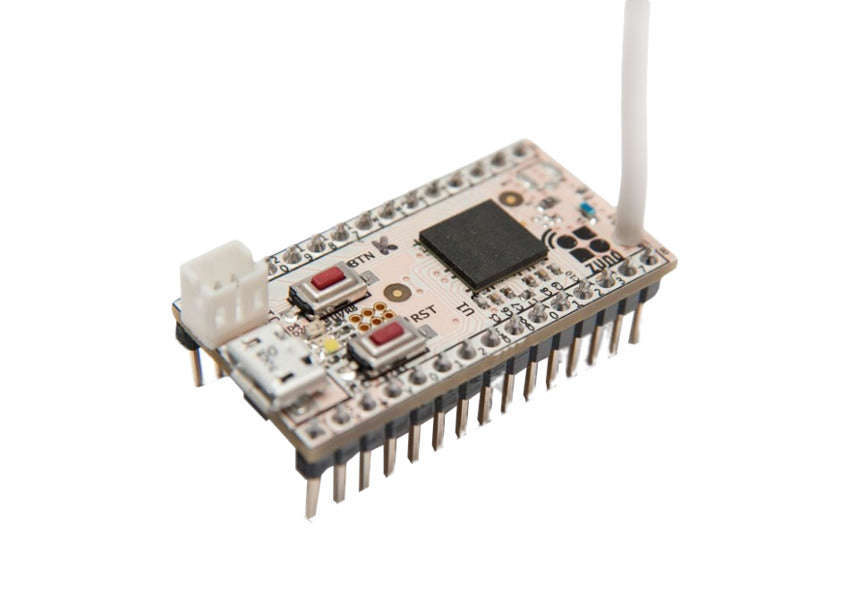

ZME Z-Wave Z-Uno Board


Price:
$118.80

Description

Quick Overview

The Z-WAVE.ME Z-Uno  is the first (and only) easy to use developer board that allows you to create your own Z-Wave device!

  • Compatible with many Arduino peripherals
  • Z-Wave Plus certified
  • Programmable with simplified C language
  • Supports 1-Wire and I2C (software)

Product Details

The Z-WAVE.ME Z-Uno is the perfect solution for DIY home automation systems. It is made for those who are limited by the existing choice of Z-Wave products and want to extend their smart homes with more sensors and actuators; connect LEDs, buttons, switches, motors or any low voltage sensor (including most compatible Arduino sensors) and write your own code in simplified C language to create your personalized Z-Wave device.

You can find many example projects and comprehensive tutorials on the Z-WAVE.ME Z-Uno website.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

  • Vera Edge
  • Fibaro Home Center 2/Lite
  • Z-Wave.me RaZberry Card

Product Support

Manuals:



Z Uno pinout
Pinout diagram for Z-Wave.me Z-Uno

Technical Specifications

RF Protocol
Z‐Wave Plus (500 series chip)
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z-Wave Device Type
Binary/Multilevel switch,
Binary/Multilevel sensor, meter
Power
 USB 5V, external 3V, external 7-18V or battery
Hardware
28kB Flash memory for sketches
2 kB RAM
26 GPIO
1 USB (serial port)
64 kB EEPROM
Operation Range
Up to 30m indoors (with no obstacles)
Z-Wave Channel Types
Binary/Multilevel switch,
Binary/Multilevel sensor, meter
Operation temperature
10 ~ 40 °C
Storage temperature
‐10 ~ 60 °C
Weight
10g
Board Dimensions
39mm x 20mm x 16mm
Antenna Length
86mm
Housing
N/A
