Description
Quick Overview
Note: This is an updated version of the Z-Wave Single Switch Lighting Set with improved functionality.

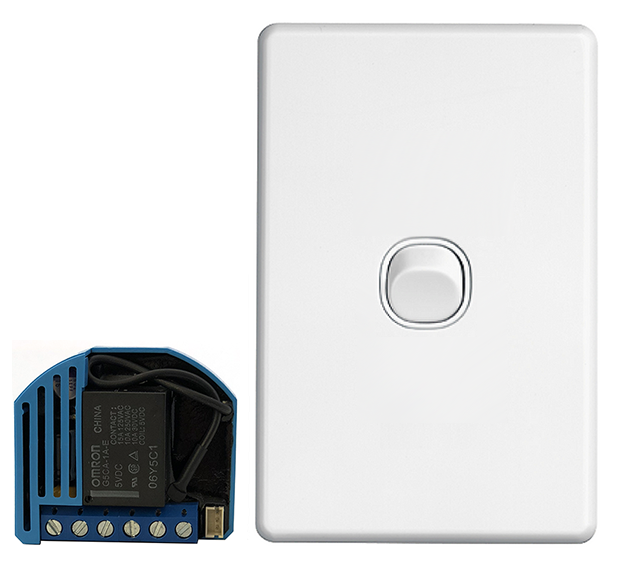

This set allows you to control a single lighting circuit with Z-Wave. It allows for remote control using a connected Z-Wave gateway or manual control using the solid state (ON/OFF) button. The set contains:
- One QUBINO Z-Wave Single Switch InWall Controller
- One Clipsal 1 Gang Impress Series Wall Plate
- One Clipsal Impress solid state (ON/OFF) button
The QUBINO Z-Wave Single Switch InWall Controller (by GOAP) includes additional features compared to the previous dimmer used in this set. It uses the latest 500 Series Z-Wave chip, has a greater communication range and is fully integrated with Vera ADD Wizards as "Qubino Flush 1 Relay ZMNHAD1". It also allows for 2-3 way wired switching.
Clipsal Impress Series Wall Plates are available in the following colours; Chrome, Gold, Brushed Aluminium, Brushed Brass and White. Please specify the colour in your order comments.
An LED option is available for the Clipsal buttons. The LED is always on and helps you to locate the button in the dark. You can order the LED option for your buttons .
Note:This product must be installed by a qualified electrician.
Product Support
Manuals:
Switch Technical Specifications
|
Product Name
|
Flush 1 relay
|
|
Powered by
|
24V DC or 240V AC
|
|
Operation Range
|
30m
|
|
Max Load
|
2300W (230VAC)
|
|
Radio frequency
|
921.42 MHz (AU/NZ Z-Wave)
|
|
Power Consumption
|
0,4W
|
|
Operation temperature
|
-10 -+40 C*
|
| Measured temperature range | 0,5o C (within 0o C - 40o C range) (optional sensor) |
|
Temperature measuring accuracy
|
0,5 C
|
|
Housing
|
ABS
|
|
Dimensions (W x H x D)
|
41,8 x 36,8 x 15,4mm
|
