Z-Wave Dbl Sw Clipsal Saturn

Z-Wave Dbl Sw Clipsal Saturn

  • $199.00
Tax included. Shipping calculated at checkout.


Quick Overview

Note: This is an updated version of the Z-Wave Double Switch Lighting Set with improved functionality.

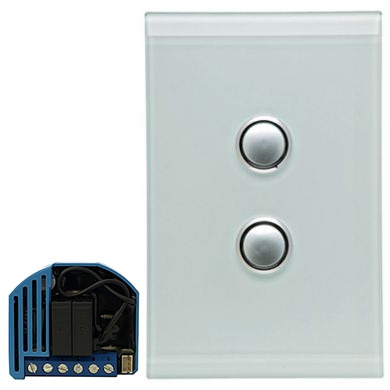

This set allows you to control two seperate lighting circuits with Z-Wave. It allows for remote control using a connected Z-Wave gateway or manual control using the solid state (ON/OFF) buttons. The set contains:

  • One QUBINO Z-Wave Double Switch InWall Controller
  • One Clipsal 2 Gang Saturn Series Wall Plate
  • Two Clipsal Saturn solid state (ON/OFF) buttons

The QUBINO Z-Wave Double Switch InWall Controller (by GOAP) includes additional features compared to the previous dimmer used in this set. It uses the latest 500 Series Z-Wave chip, has a greater communication range and is fully integrated with Vera ADD Wizards as "Qubino Flush 2 Relay ZMNHBD1". It also allows for 2-3 way wired switching.

Clipsal Saturn Series Wall Plates are available in the following colours; Espresso Black, Ocean Mist and Pure White. Please specify the colour in your order comments.

An LED option is available for the Clipsal buttons. The LED is always on and helps you to locate the button in the dark. You can order the LED option for your buttons .

Note:This product must be installed by a qualified electrician.

Product Support

Manuals:



Double Switch Technical Specifications

Product Name
Z-Wave Dbl Switch
Powered by
24V DC or 240V AC
Operation Range
50m without obstacles
Max Load
2300W (230VAC)
Radio frequency
921.42 MHz (AU/NZ Z-Wave)
Power Consumption
0,4W
Operation temperature
-10 -+40 C*
Measured temperature range 0,5o C (within 0o C - 40o C range) (optional sensor)
Temperature measuring accuracy
0,5 C
Housing
ABS
Dimensions (W x H x D)
41.8 x 36.8 x 15.4 mm
