Description
| Quick Overview |

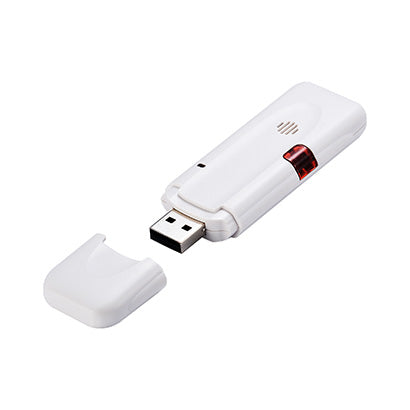

The VISION Z-Wave USB Adapter is a Z-Wave USB dongle. When attached to a PC, laptop etc, it becomes a Z-Wave communication device, which connect the PC/MAC based Z-Wave software(sold separately) with different Z-Wave devices through integrated USB.
Within the Z-Wave wireless network the Z-Stick acts as a static controller with enhanced (SUC/SIS) network management function. In order to use the full functionality a software application such as Z-Cloud or Z-Way is needed to run on the host. Z-Stick supports all kinds of third party software complying with the Zensys Serial API.
- USB 2.0 full speed
- XP, Vista and Windows7
- Mac OS X 10.6.x Snow Leopard (and later)
- Range: 30m indoors
| Product Details |
VISION Z-Wave USB Adapter is primarily designed to allow a host processer to control up to 232 Z-Wave devices using the Z-Wave technology protocol as well as simplifying Z-Wave network installation.
This device will work with the following software packages:
- Homeseer
- Z-Cloud
- Z-Way
It requires suitable Z-Wave software (e.g. listed above), as it does not come with any Z-Wave control software itself.
Please Note: The Z-Wave USB Adapter requires a specific VCP driver to be installed.
⇒ ZW050x_USB_VCP_PC_Driver (ZIP Size: 7KB)
| Product Support |
Manuals:
⇒ VISION Z-Wave USB Adapter Manual (Size: 269 KB)
| Technical Specifications |
|
RF Protocol
|
Z‐Wave (Multilevel Command Class)
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐wave device type
|
Z-Wave controller
|
|
Power
|
DC 5V |
|
Operation Range
|
Up to 30m without obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0 ~ 60 °C
|
| Status Indicator | LED light |
|
Storage temperature
|
‐10 ~ 80 °C
|
|
Weight
|
30g
|
|
Housing
|
ABS
|
|
Dimentions
|
88x30x11mm |
