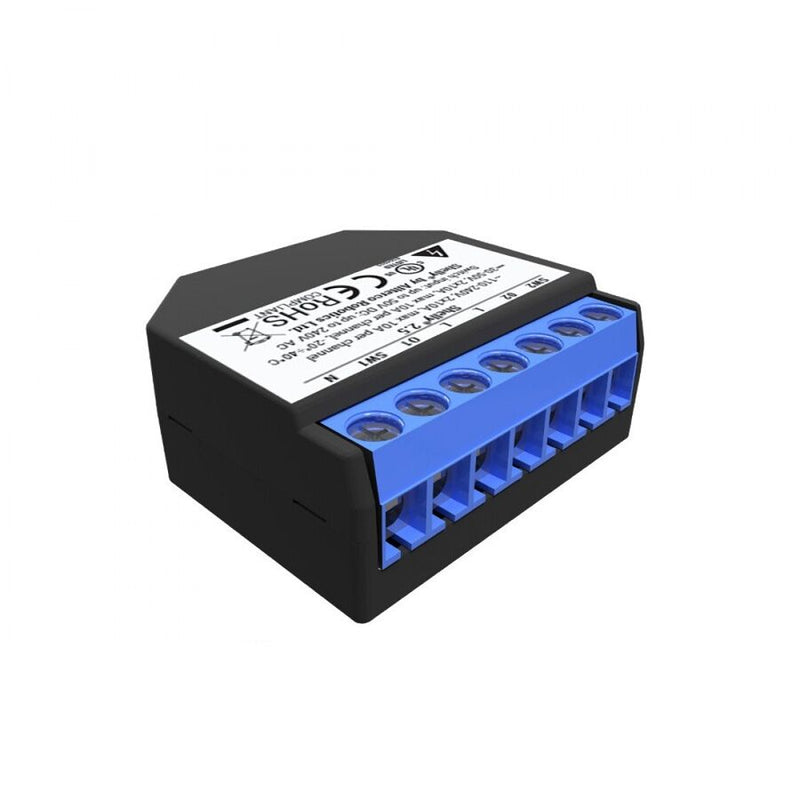

Control a wide range of motorised blinds, shutters or awnings from anywhere with the World’s smallest WiFi-operated double relay switch with roller shutter functionality. Or add smart on /off control to 2 separate electrical circuits.
20% more powerful. 30% smaller. 50% increased rnage.
No HUB required – Connect Shelly 2.5 directly to your Wi-Fi router.
Control lighting and appliances at home, no matter where you are in the World.
Wide range of voltage support
Shelly 2.5 supports low voltage 24-60V DC as well 240V AC on/off control..
Shelly 2.5 can automatically follow the sunrise and sunset and control your lighting accordingly.
Dual power metering
Intelligently designed to fit in small spaces and behind wall switches. Shelly 2.5 is smaller than two cookies stacked together.
2 x appliance control.
Shelly 2.5 provides independent control of two seperate devices and appliances (up to 10A for each relay channel) – it also supports low voltage 24~60VDC and 240V AC.
2 x lighting control.
Control 2 seperate sets of lights and maintain manual control from 2 separate wall-switches (on the same wall-switch plate).
Blinds and awnings.
Know your spend – Shelly 2.5 will precisely monitor and measure the connected loads power consumption.
If Shelly 2.5 detects the internal temperature or attached power consumption is too high – it will turn off automatically.
Shelly is an open platform. With the embedded web server and HTTP commands, Shelly can be made compatible with your home automation systems and projects… securely and easily.
The finer details
|Power supply AC:||110-230V ±10%, 50/60Hz|
|Power supply DC:||24 – 60V|
|Maximum load:||10A per channel|
|Device power consumption:||< 1 W|
|Roller shutter mode:||Yes|
|Device temperature protection:||Yes|
|Working without a neutral wire:||No|
|Control channels:||2 independant on/off relay channel|
|Operational temperature:||0°C to + 40°C|
|Local and smart control:||Yes|
|Built-in weekly scheduler:||Yes|
|Wi-Fi protocol:||802.11 b/g/n|
|Radio frequency:||2400 – 2500 MHz|
|Radio signal power:||1mW|
|Wireless range:||up to 50 m outdoors and up to 30 m indoors (depending on the building materials)|
|Size:||39mm x 36mm x 17mm|
