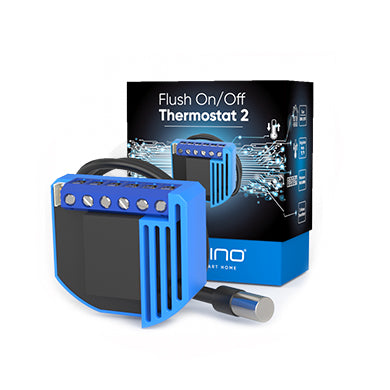

QUBINO Z-Wave Thermostat 2

QUBINO Z-Wave Thermostat 2

  • $108.90
Tax included. Shipping calculated at checkout.


Quick Overview



The QUBINO On/Off Thermostat 2  (made by Goap Europe) is your wireless heating and hot water controller that also measures the power consumption. This amazingly tiny module is ideal for wireless control of electric or water-based underfloor heating systems, electric water heaters, hot water pumps, and electric radiators.

  • Z-Wave Plus certified, Security S2, SmartStart ready
  • Includes digital temperature sensor
  • Can measure the power consumption of connected device (within 3% accuracy)
  • Extremely low energy consumption (less than 0.4W)
  • Frost free mode: Specifies a minimum temperature for the heating system connected to the module to prevent your pipes from freezing
Product Details



The QUBINO Z-Wave ON/OFF Thermostat 2 can be used to directly control electric or water-based underfloor heating systems, electric water heaters, hot water pumps, electric radiators and similar. You can control it either remotely through the Z-Wave network or through wall switches.

The QUBINO Z-Wave ON/OFF Thermostat also measures power consumption and supports the connection of a digital temperature sensor.

This product integrates with Australian certified (921.42 MHz) Z-Wave Controllers including Fibaro Home Center 2/Lite


Pleased Note: It  doesn't integrate with Vera gateways at this stage, yet.





QUBINO ON OFF Thermostat2 AC WiringQUBINO ON OFF Thermostat2 AC Wiring2



Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices a Z-Wave gateway is available in the Manuals section.

Product Support



Manuals:



Technical Specifications



RF Protocol
Z‐Wave Plus (500 series chip), Security S2
SmartStart ready, Z-Wave Repeater
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
Z-Wave binary switch, routing slave
Power Supply
230V AC ± 10% OR 24-30V DC
Rated Load Current of AC Output (resistive load)
1 x 10A / 230V AC
Rated Load Current of DC Output (resistive load)
1 x 10 A / 30V DC
Output circuit power of AC output (resistive load)
2300W (230V AC)
Output circuit power of DC output (resistive load) 240W (24V DC)
Operation Range
Up to 40m indoors (with no obstacles)
Application
Indoor use only
Operation temperature
-10 ~ 40 °C
Digital Temperature Sensor cable length
1000 mm
Weight
48g
Dimensions
41.8mm x 36.8mm x 16.9mm
