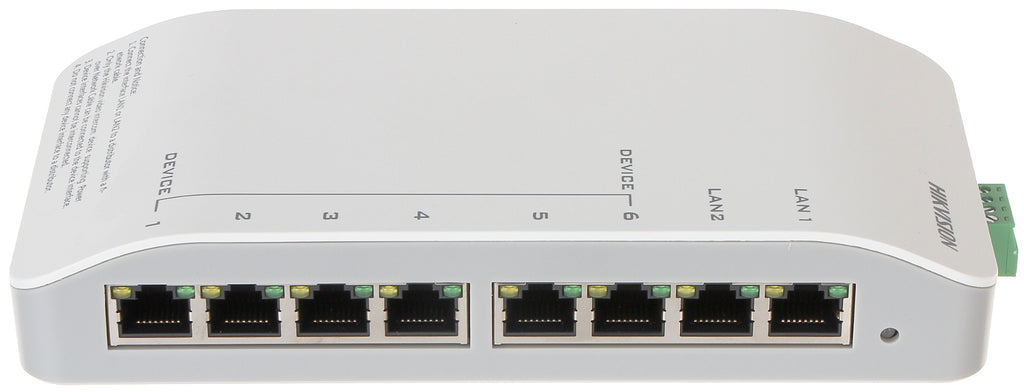

Hikvision DS-KAD606-P Intercom 6 Port Video & Audio Distributor incl. Power Adapter


Price:
$145

Description

Video/Audio Distributor  DS-KAD606P provides 24v – this distributor totally different from normal POE switch. The normal POE provides 48v.

If DS-KAD606P not used, your option is power the door station and monitor using 12volts power supply. Make it sure you provide power to door station and monitor first before plugging to POE switch. (Once 12v provided the POE power automatically disabled)

Wiring overview

Intercom Wiring

Product Details

Network Parameters

Interface number: Eight 10/100 Mbps Interfaces
Interface type: RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type: Storing and Forwarding
Flow control: IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex)
Priority queue: Four
Max. VLAN: 64
VLAN ID No.: VID1 to VID4094
MAC address list: 8K
Internal buffer: 1 Mbit


General

Power Supply: 24 VDC (24V DC Power Adapter included)
Power Consumption: ≤8 W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%, No Condensation
Dimensions(L × W × H): 176 mm × 91 mm × 32 mm (69.3″ × 35.8″ × 12.6″)
