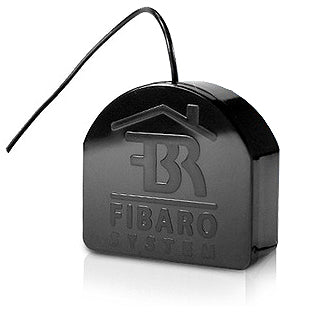

FIBARO ZWave Sgl Switch InWall


Price:
$119.99

Description

Quick Overview



 The Fibaro Z-Wave Single Switch Controller is a wireless controller which can control appliances or lighting up to a maximum load of 2.5kW 10A

  • Control the ON-OFF function of a circuit remotely or using a wall switch
  • Compatible with all Z-Wave networks
  • Acts as a repeater expanding your Z-Wave network
  • Wide range of compatibility with existing light fittings and does NOT require expensive cabling



Product Details



The Fibaro Z-Wave Single Switch Controller is a smart Z-Wave controller capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket and can be easily installed by a qualified electrician.

This Fibaro Z-Wave Single Switch Controller requires 3-wire (including neutral) installation and works with an AC (110-230V) or DC (24-60V) power supply.

The controller is also compatible with many popular BELL PRESS type light fittings including Clipsal IMPRESS and SATURN wall switches.

The Fibaro Z-Wave Single Switch Controller also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

  • Vera 3/Lite
  • Raspberry PI with RaZberry Card
  • Fibaro Home Controller 2/Lite
  • DHS Z-Wave Universal Remote Controller
  • DHS Z-Wave Mini Remote Controller

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician, check that they provide an electrical compliance certificate.
For warranty claim you have to provide installation compliance certificate from your electrician.

Product Support



Manuals:





Technical Specifications



RF Protocol
Z‐Wave
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
Z-Wave Switch, Routing Slave
Power
110-230V ± 10% 50/60 Hz
Operation Range
Up to 15m indoors with no obstacles
Application
Indoor use only, up to 2.5kW resistive load, 10A
Operation temperature
0 ~ 55 °C
Storage temperature
‐10 ~ 80 °C
Weight
50g
Housing
ABS
Compliance
EN 55015, EN 60669-2-1
Regulatory Compliance Mark
N5496
Dimensions
(LxWxH) 42mm x 37mm x 17mm
