Designed for modern pedestrian access, this Automatic Swing Door Opener Kit is ideal for hospitals, aged care facilities, offices, retail spaces, and smart homes where quiet operation, accessibility compliance, and dependable performance are essential.

If you are looking for a reliable, compact, and professional Automatic Swing Door Opener Kit, this kit delivers smooth automation, advanced safety, and long-term durability for commercial and residential swing doors.

Manufactured in Italy, represents European engineering excellence — combining refined design with advanced electronics to create a premium Automatic Swing Door Opener Kit built for real-world use.

What Is an Automatic Swing Door Opener Kit?

An Automatic Swing Door Opener Kit is a motorised system that converts a manual hinged door into an automatic entrance. The door can open automatically via sensors, push buttons, access control, or Push & Go activation.

The ARIA.S version uses motorised opening with spring-assisted closing, offering controlled door return while maintaining automatic convenience.

This Automatic Swing Door Opener Kit supports both single swing doors and accessibility upgrades where compliance and safety are required.

Maximum Door Leaf Weight: Up to 250kg

This makes the system suitable for heavy:

• Timber swing doors

• Aluminium commercial doors

• Framed glass doors

• Healthcare and aged care entrances

• Office and retail access doors

For best performance, the door should:

• Open smoothly by hand before automation

• Be correctly hinged and balanced

• Have minimal floor or frame friction

While the automatic swing door system is rated for 250kg, proper door condition ensures optimal reliability and long service life.

Recommended Door Size Ranges

Door size affects overall performance and mechanical stress. For best results, we recommend the following ranges:

 Standard Single Swing Door

• Door width: 700mm – 1200mm

• Door height: up to 2400mm

• Maximum door weight: 250kg

Ideal for offices, clinics, retail shops, and residential entrances.

 Large Commercial Swing Doors

• Door width: up to 1400mm

• Door height: up to 2500mm

• Maximum door weight: 250kg

Suitable for hospitals, aged care facilities, and public buildings requiring wider access.

If your door falls within these ranges, the ARIA.S automatic swing door system will provide smooth, controlled motorised opening with reliable spring-assisted closing.

For oversized or unusually heavy doors, we recommend contacting our technical team before installation.

Technical Overview

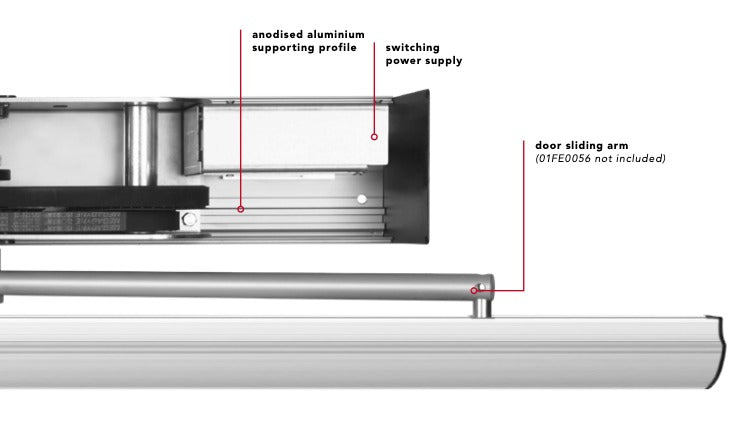

The Automatic Swing Door Opener Kit includes:

• Integrated electronic control unit

• 24V DC gear motor with encoder

• Spring closing mechanism

• Aluminium supporting profile

• Protective aluminium housing

• Sliding or articulated arm options

Core Specifications:

• Power supply: 100–240V AC

• Maximum power consumption: approx. 70W

• Standby consumption: approx. 3W

• Accessories output: 24V DC / 1A

• Opening time (90°): approx. 1.5–10 seconds

• Operating temperature: –15°C to +50°C

• Protection rating: IP31

• Continuous operation: 100% duty cycle

This Automatic Swing Door Opener Kit is designed for long-term performance in both commercial and residential applications.

Installation Flexibility

The Automatic Swing Door Opener Kit supports:

 Sliding Arm: Ideal for inward-opening doors.

 Articulated Arm: Perfect for outward-opening doors.

 Lintel or Wall Mounting: Suitable for various architectural configurations.

Its compact profile ensures the operator integrates cleanly above the door without compromising design aesthetics.

What’s Included in the Automatic Swing Door Opener Kit

• Automatic swing door operator (motorised unit)

• Standard mounting interface (ready for arm fitting)

• Built-in electronic control unit

• Factory-instantiated drive assembly

Optional Accessories Available Separately:

• Door articulated arm to push (code 01FE0055)

• Door sliding arm to pull (code 01FE0056)

• Joint guards for dual operator installations (01AL0024 / 01AL0025 / 01AL0026)

• Swing door safety sensors (31RS0001 / 31RS0002)

• 3-position rocker switch (31IB0001)

• Pre-wired emergency battery kit (99BA0004)

• Push buttons

• Rotary selectors

•
